An incompatible issue of xls file

Posted on December 2, 2019

Background

An integration project: exporting a csv file from system A, convert the csv file to xls file and import the converted file into system B (A 3rd party system).

Environment:

Issue

The converted xls file, system B doesn't support it. However, the file can be opened in Microsoft Excel, and then system B supports it after the open operation (did nothing, just open it then close)😫.

1st Try

There are several libraries related to xls, such as pyexcel-xls,xlwings, Pandas. (OpenPyXL, xlsxwriter were not considered because the file is a xls file instead of a xlsx file.) I decided to try them one by one:

  • pyexcel-xls, Pandas, the issue is still there. Checked their dependencies, all of them mentioned xlwt.

  • xlwings, it calls Microsoft Excel and does data operations. I gave it up because this won't work in my Docker environment.

2nd Try - External systems

Depends on the clue: the file can be supported after it was opened in MS Excel, I was thinking to find an alternative way:

  • Microsoft Flow

    MS flow is a powerful tool as a part of O365 suite. My plan was:

    1. Send the xls file to my email

    2. MS flow grabs the file from email, and insert a row to the xls file, then save the change

    3. MS flow sends the file back to email

    I had to give it up because MS flow was unable to find the attached file from my email (I have figured the issue out later by creating a new flow. For my next project, I might try MS UI flows 1st).

  • Web Service

    Per Hugo-Images management. Tried my idea by Zamzar - Online file conversion, implemented the function by referring its doc:

    1. Generated a csv file in my code instead of a xls file

    2. Converted the csv file to a xls file by Zamzar

    Yes, there is “But”. I found Zamzar free edition license is based on conversation, uploading/downloading files are two conversation. 100 conversations/1 month didn't meet my expectation, quit again.

3rd - Dig the root cause

Right now, I was aware that I have to sit down and dig the root cause of xlwt.

  1. Generated the xls (File A) again, made a copy of it (file B) and opened file B by Microsoft Excel once.

  2. Compared the File A and File B with Hex Fiend

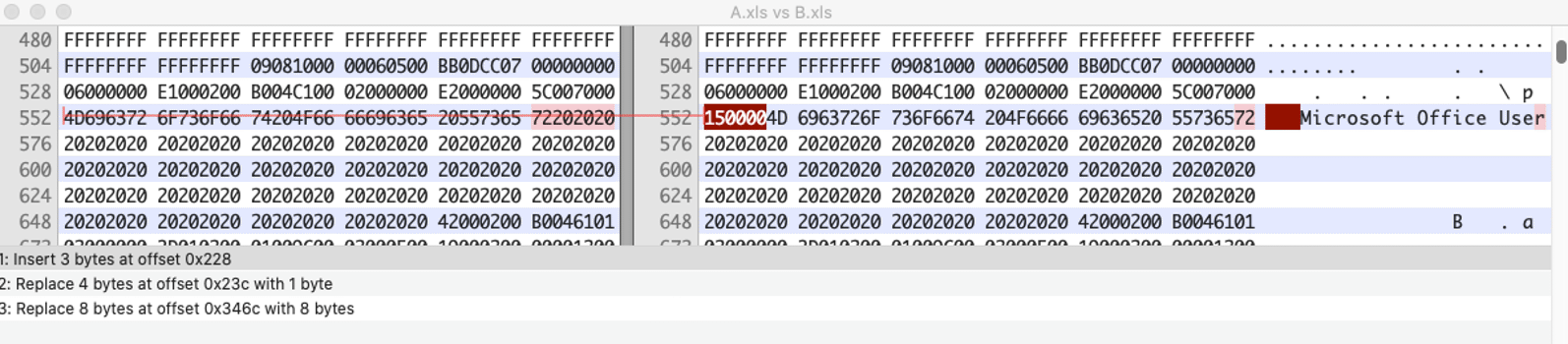

    Comparison
    Comparison

    There are only 3 differences, not too many, all I need to do is to checking them one by one💪.

  3. Open file A and file B by 0xED to check the difference

    Hex Fiend told you there are 3 differences, but it's difficult to find out what the difference exactly is, 0xED did the trick:

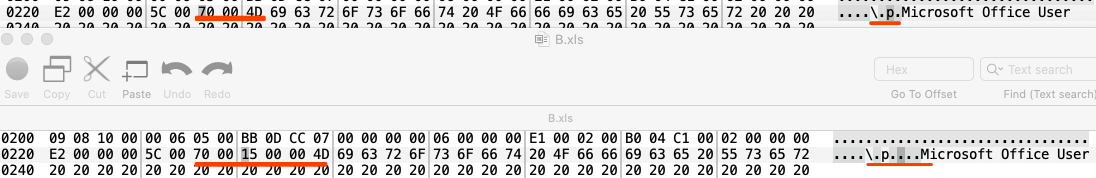

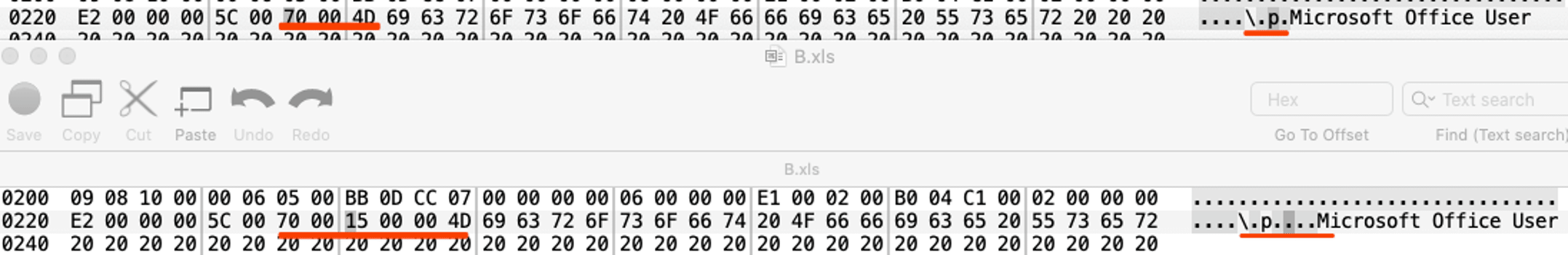

    1st difference
    1st difference

    Here are the steps I did on xlwt code:

    • xlwt -> Workbook.py -> func: save()

    • xlwt -> Workbook.py -> func: save() -> f.write(stream)

    • xlwt -> Workbook.py -> func: get_biff_data() -> before += self.__write_access_rec(), return BIFFRecords.WriteAccessRecord(self.__owner).get()

    • xlwt -> BIFFRecords.py -> class WriteAccessRecord(BiffRecord):

      Per the difference, I changed the code:

              def __init__(self, owner):
                  uowner = owner[0:0x30]
                  uowner_len = len(uowner)
                  if isinstance(uowner, six.text_type):
                      uowner = uowner.encode('ascii')  # probably not ascii, but play it safe until we know more
                  self._rec_data = pack('%ds%ds' % (uowner_len, 0x70 - uowner_len), b'\x16\x00' + uowner, b' '*(0x70 - uowner_len))

      Note: The binary string is ‘15 00’ in screenshot, but it should be “16 00” when I was working on this, that's why the code and screenshot are inconsistent.

  4. Run my code again, the xls can be support now!!! 🎉🎆😂 I felt I'm so lucky because the issue was resolved by fixing the 1st difference.

Publish the change to Dock environment

Do docker cp to copy the modified libraries to docker instance…. Just kidding😂

Here what I did:

  1. Fork xlwt code on Github and push my change

    Note: I might create a pull request later after I figured out what I changed.

  2. New a pip requirement file: requirement-git.txt with the content:

    # xlwt 1.3.0
    https://github.com/gainskills/xlwt/zipball/master


    Note:

    • pip freeze > requirement.txt for all libraries.
    • Besides xlwt, I also have flower1.0 in requirement-git.txt
    • git+https://github.com/gainskills/xlwt.git works for the docker instance which has git installed
  3. run pip install -r requirement-git.txt before pip install -r requirement.txt
