Flask, Flask-WTF, Flask-Bootstrap, Select2, jinja2 integration

Posted by Blog - uTIcARdI on April 16, 2018

I intend to acquire the Python skill on web after years’ work on data processing, so I started with Flask by following Miguel Grinberg’s instructionThe Flask Mega, you can learn how to integrate bootstrap with your project from it.

After that, you can learn how to integrate select2 with your project by reading Flask Web开发:用Select2实现类似知乎的标签系统 as a guide.

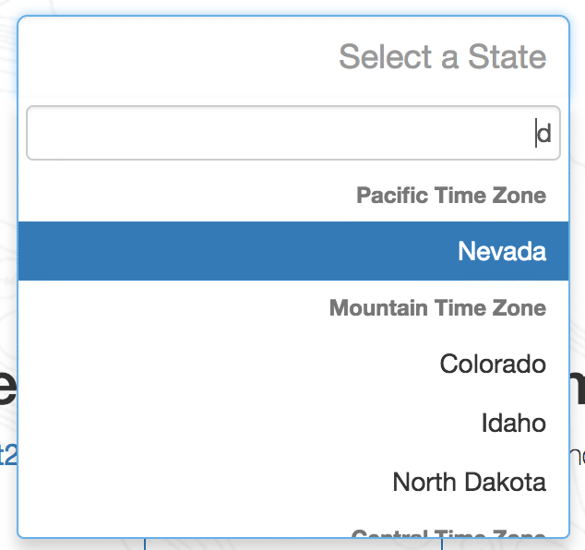

Here is a demo of select2:

run mininet
run mininet

Packages:

  • Jinja2 2.10
  • WTForms 2.1
  • WTForms-Components 0.10.3
  • WTForms-SQLAlchemy 0.1SQLAlchemy 1.2.6
  • Flask 0.12.2
  • Flask-Bootstrap 3.3.7.1
  • Flask-Migrate 2.1.1
  • Flask-SQLAlchemy 2.3.2
  • Flask-WTF 0.14.2

1. TypeError: $(…).select2 is not a function

I met this error at the start of integration, and found my answer from stackoverflow (See my code in Q2 part):

This error raises if your js files where you have bounded the select2 with select box is loading before select2 js files. Please make sure files should be in this order like.. - Jquery - select2 js - your js

I found that jquery was loaded twice from developer Tools even if I have linked it in header, this has been mentioned in Flask Bootstrap official guide:

An easy-to-miss quirk are the block names: While there is a block named body, it usually is not the one you want to replace, use content instead. Currently, javascript is loaded at the end of the tag by default).

2. Flask renders the header of html twice

The resolution for Q1 and Q2 are more like a trick about how to use Flask Bootstrap blocks.

Here is my code:

  • base.html

    {% extends 'bootstrap/base.html' %}
    {% block styles %}
        <link href="{{ url_for('.static', filename='css/bootstrap.min.css') }}" rel="stylesheet">
    {% endblock %}
    {% block title %}
        Python Flask, Flask-WTF, Flask-Bootstrap, Select2, jinja2 integration
    {% endblock %}
    {% block scripts %}
        <script src="{{ url_for('.static', filename='js/jquery.min.js') }}"></script>
    {% endblock %}
    {% block content %}
    {% endblock %}

  • extend.html

    {% extends "base.html" %}
    {% import 'bootstrap/wtf.html' as wtf %}
    {% block styles %}
        {{ super() }}
        <link href="{{ url_for('.static', filename='css/select2.css') }}" rel="stylesheet">
        <link href="{{ url_for('.static', filename='css/select2-bootstrap.css') }}" rel="stylesheet">
    {% endblock %}
    {% block scripts %}
        {{ super() }}
        <script src="{{ url_for('.static', filename='js/select2.js') }}"></script>
        <script type="text/javascript">
            $('select').select2({
                theme: 'bootstrap',
                language: 'zh-CN',
                allowClear: true,
            });
        </script>
    {% endblock %}}
    {% block content %}
    <div class="container">
        <form action="" method="post">
            <div class="col-md-2">
                {{ wtf.form_field(form.ctgy, class='form-control') }}
            </div>
    </form>
    </div>
    {% endblock %}


3. Flask-WTF and wtforms_sqlalchemy

I met following error when I try to organize select’s data from db query result

cls, key = identity_key(instance=obj)
ValueError: too many values to unpack (expected 2)

Here is the patch about the issue.
