Cisco IPS–Inline VLAN Pair mode

Posted by Blog - uTIcARdI on March 24, 2017
  1. Setup Cisco IPS on EVE

    I failed to setup Cisco IPS on EVE(ver 2.0.3-53). I Downloaded Cisco IPS ova file via certcollection (mega)

    Followed the instructions for IPS Interfaces.

    and met the issue:

    Cisco IPS failed to ping anything out of it, I run traffic capture on IPS’s interface, no packet out when I execute ping command.

    Related post on EVE official forum, and the official answer is: This image is corrupted and not working neither on UNL nor EVE

    So, I deploy it on VMware vShpere

    vmware-1
    vmware-1

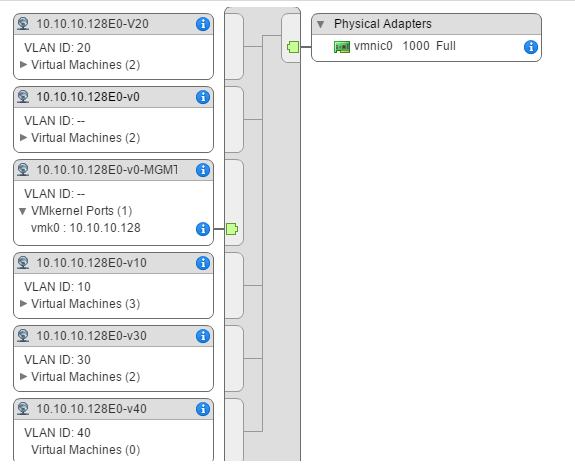

    Setup VM networks as well

    vmware-2
    vmware-2

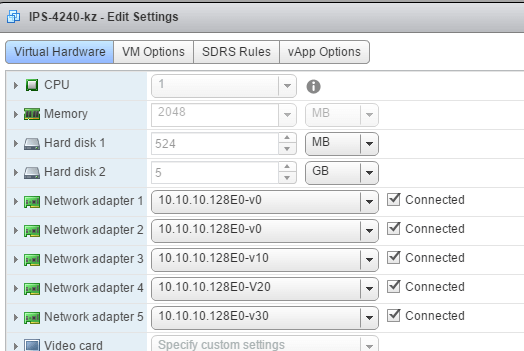

    Change VM-IPS’s networks

    vmware-Network-1
    vmware-Network-1

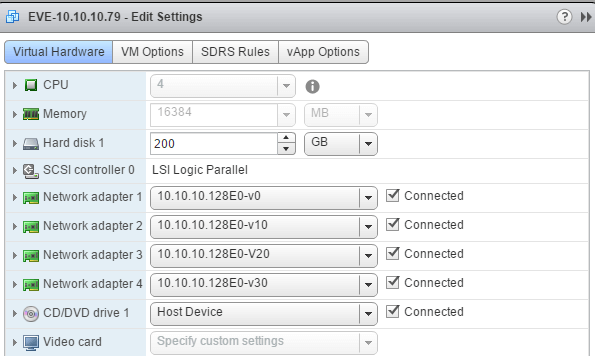

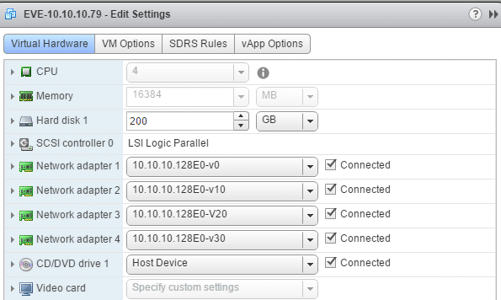

    Change VM-EVE’s networks

    vmware-Network-2
    vmware-Network-2
  2. Start the VMS and setup a Lab in EVE

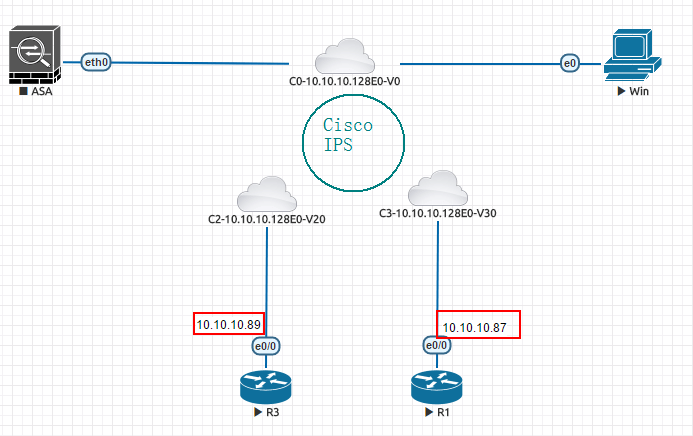

    Topo
    Topo
  3. Initialize Cisco IPS

    I initialized the device from Cisco IPS console interface.

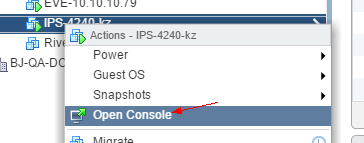

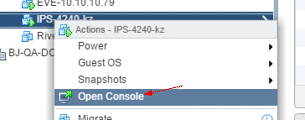

    Console
    Console

    Default username/password is cisco/ciscoips123

    then enter command ‘setup‘ to initial the device.

    The most import thing is to disable HTTPS. Cisco IPS enabled https by default and its cert was not supported by most browsers(Chrome/Firefox/IE) now. Execute following commands:

    service web-server
    enable-tls false
    port 80
    exit

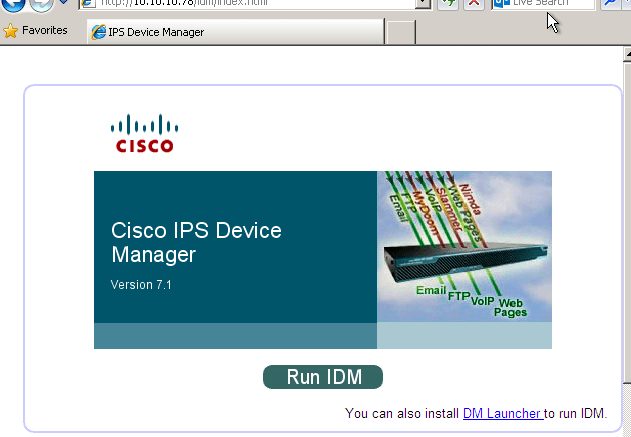

    Then access IPS by http, it will prompt you to lunch IDSM(* Java required)

    IPs DM
    IPs DM

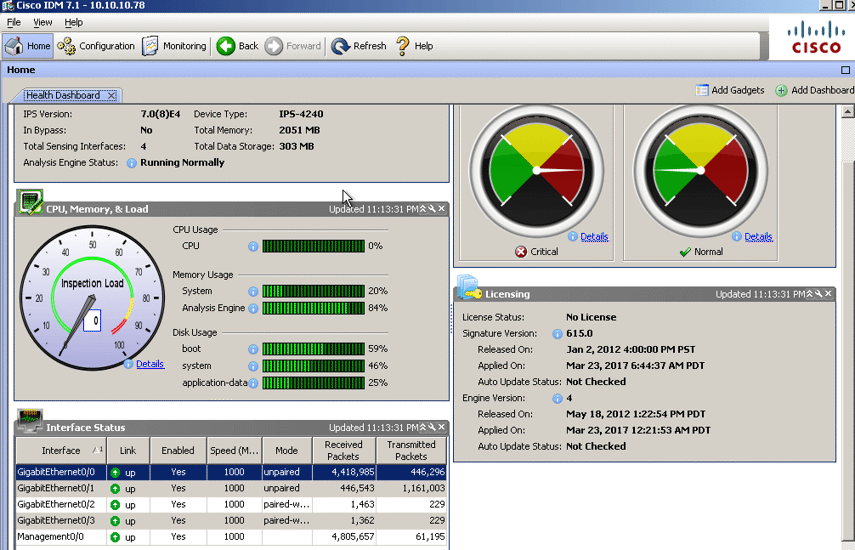

    IPs DM Main UI
    IPs DM Main UI
  4. Configure Interface Pairs

    Before Cisco IPS Interface Pair

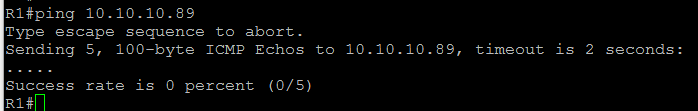

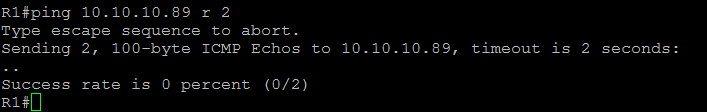

    Ping-1
    Ping-1

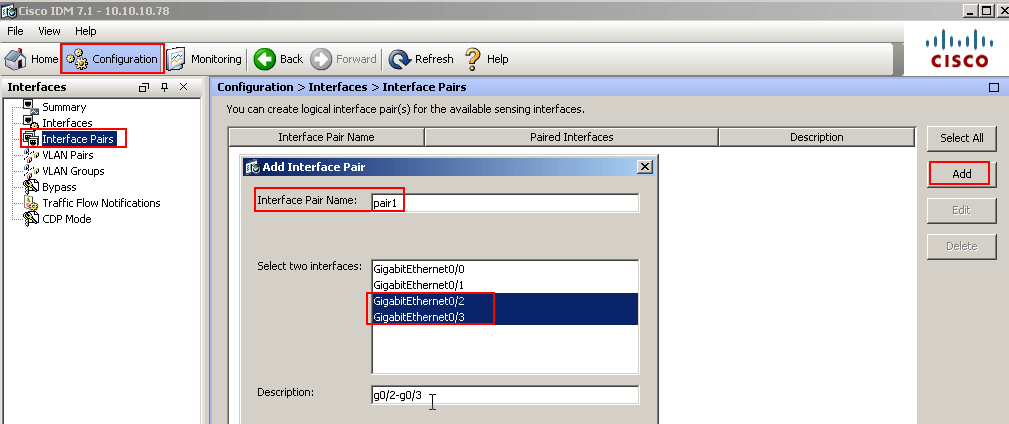

    Configure Interface Pair

    Interface Pair
    Interface Pair

    After Cisco IPS Interface Pair

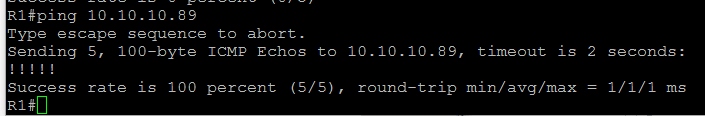

    Ping-2
    Ping-2

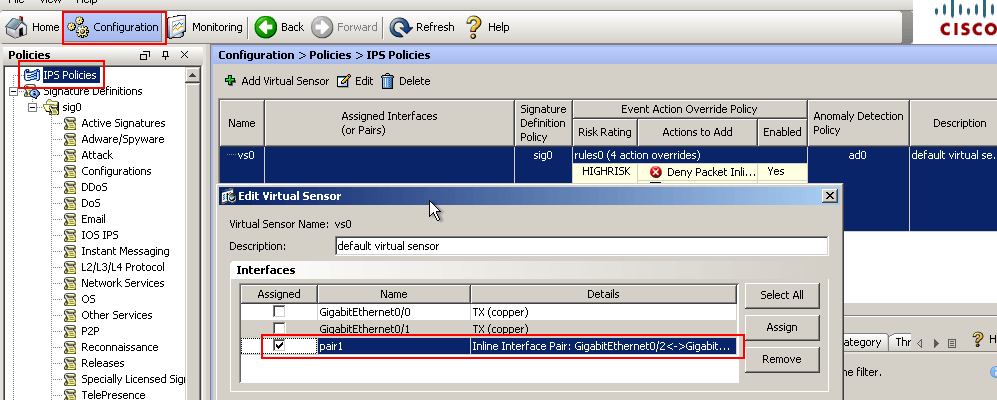

  5. Bind vs

    VS-1
    VS-1
  6. Exercise 1 - Recognize ICMP as Attack

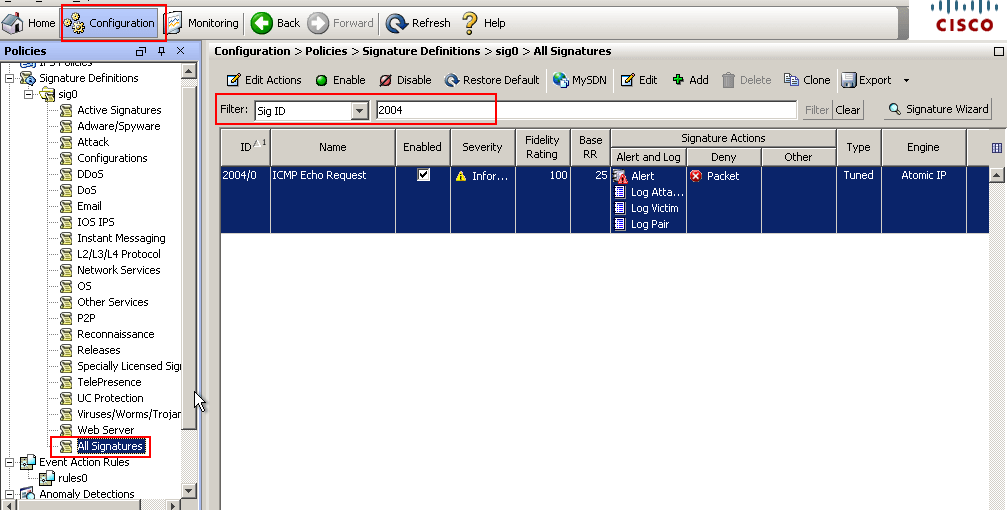

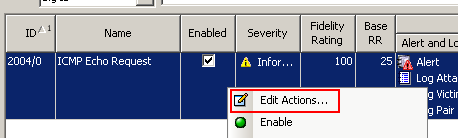

    Sig-1
    Sig-1

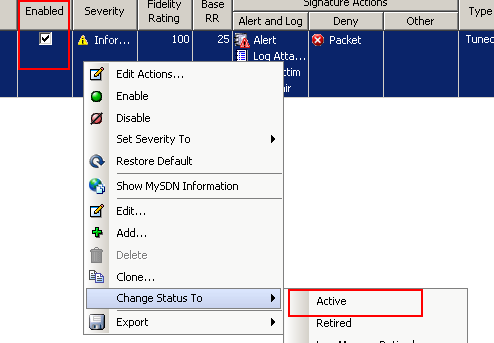

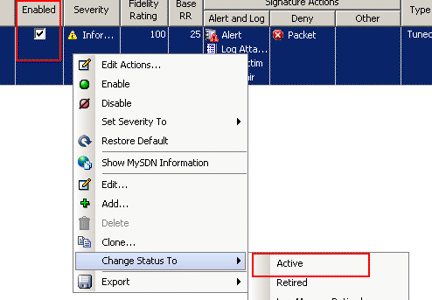

    Sig-2
    Sig-2

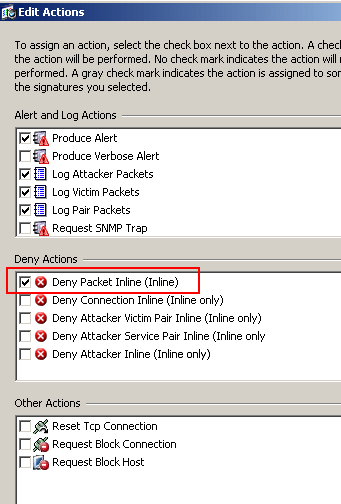

    Sig-3
    Sig-3

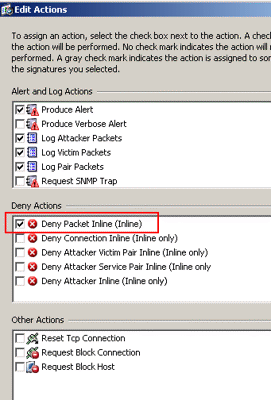

    Sig-4
    Sig-4

    Verification: Execute ping command on R1

    ping-3
    ping-3

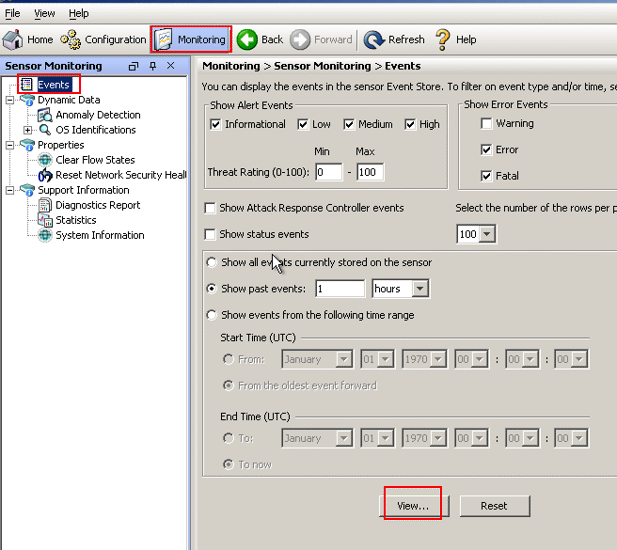

    Cisco IPS Event

    Event-1
    Event-1

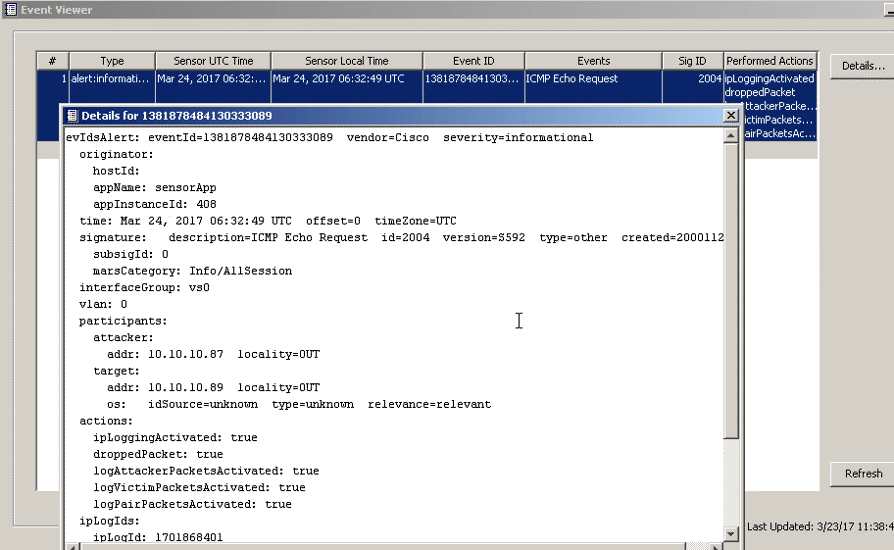

    Event-2
    Event-2
